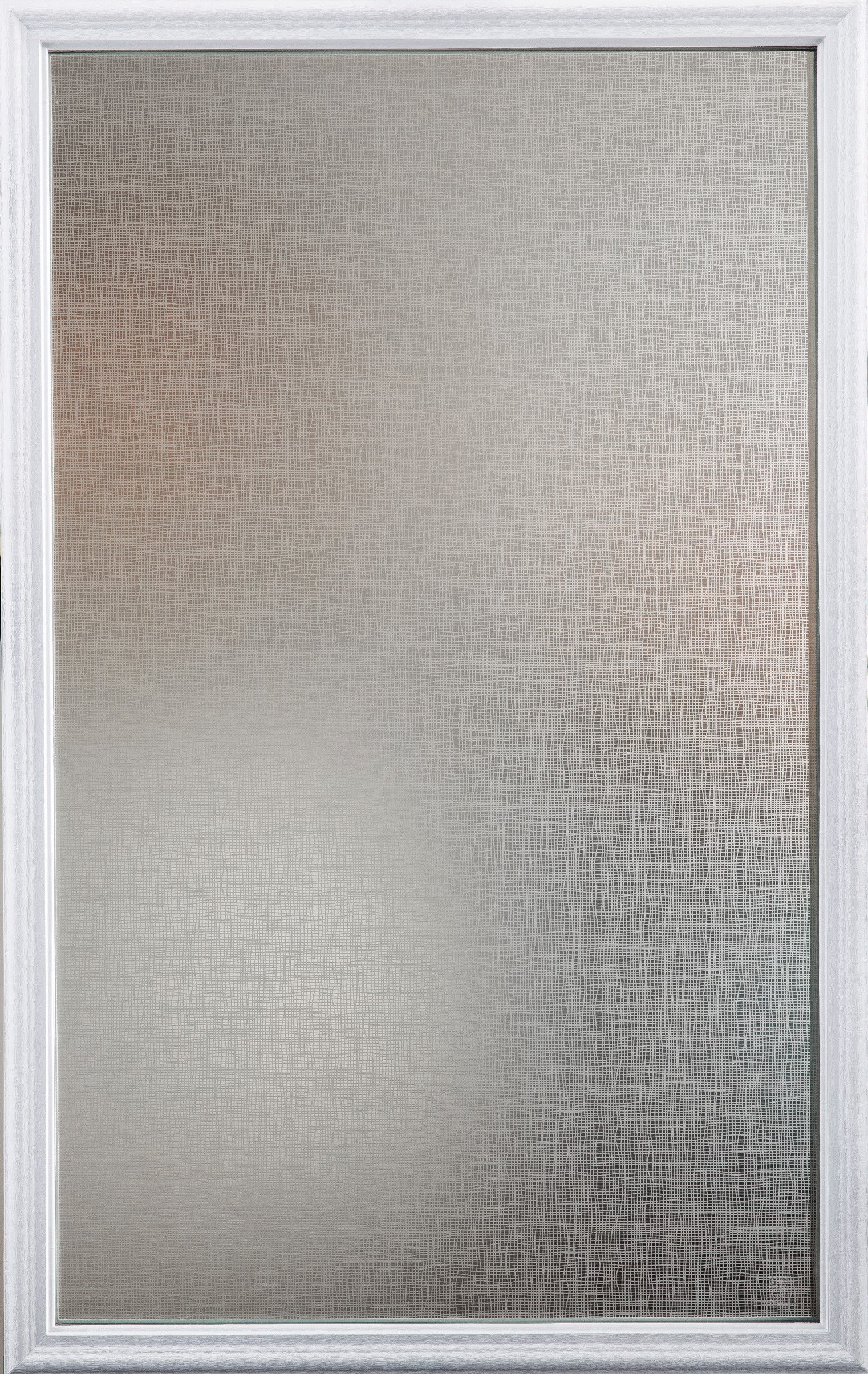

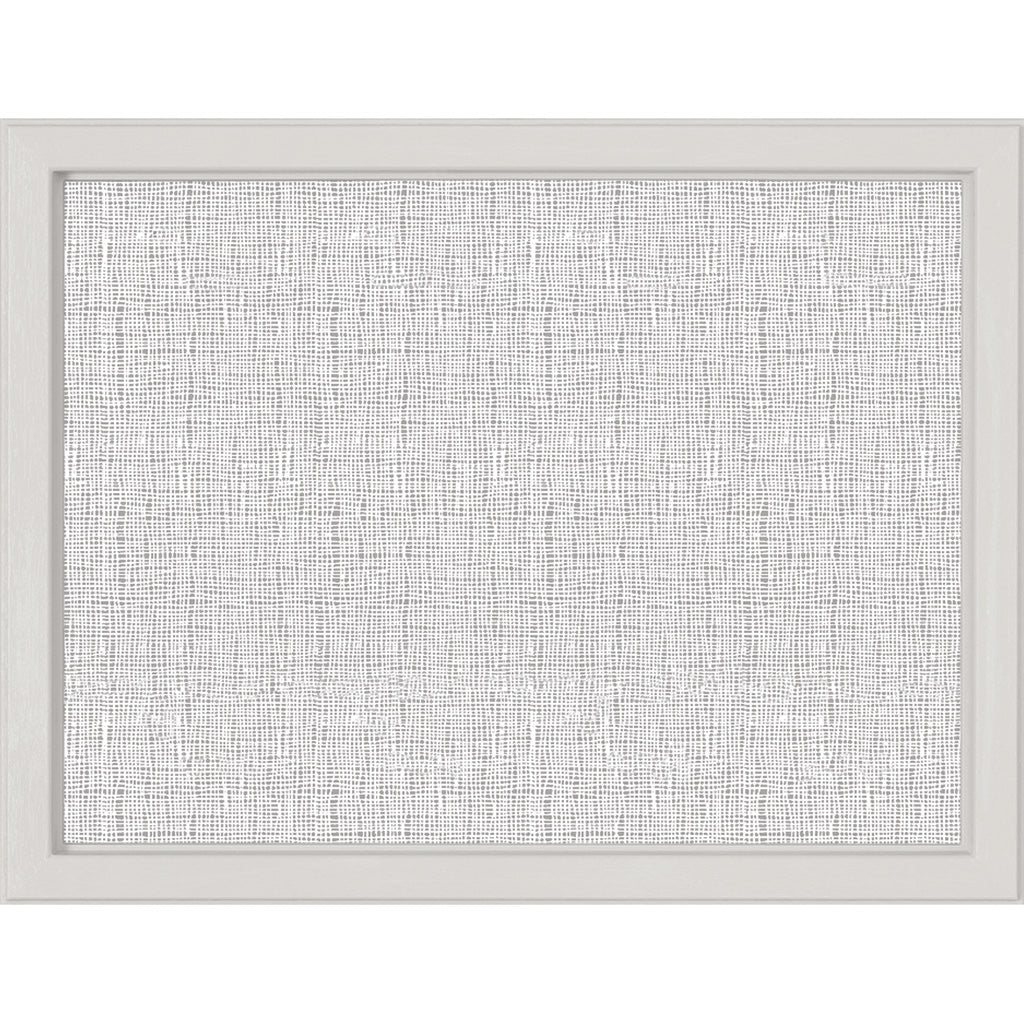

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

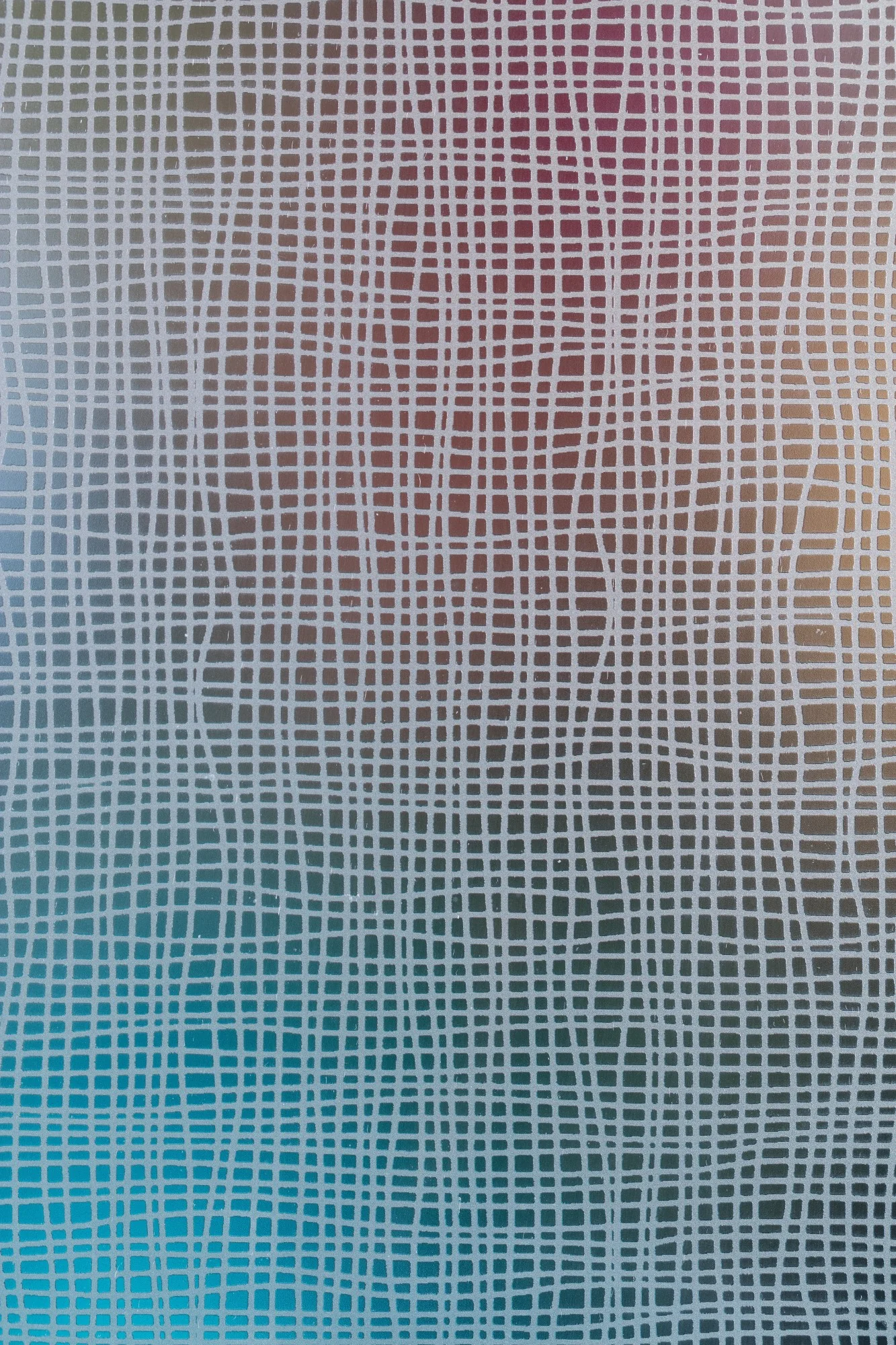

Woven glass provides a high degree of privacy and a subtle style for those looking for an interesting alternative to the standard frosted or rain textured glass. Comes standard with Low-E (energy efficient) glass.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps (if needed, some craftsman frames do not require screw caps).

Measurements:

Style: Craftsman (also known as Quaker style, rectangular)

Standard size:

• Frame outside dimensions: 24" x 17.25" (replaces frames 23.5" to 24" wide and 16.75" to 17.25" tall)
• Door cutout dimensions: 23" x 16.25"
• Glass dimensions: 1/2" thick, 22" wide, 15.25" tall

Tall size:

• Frame outside dimensions: 24" x 19" (replaces frames 23.5" to 24" wide and 18.5" to 19" tall)
• Door cutout dimensions: 23" x 18"
• Glass dimensions: 1" thick, 22" wide, 17" tall

Wide size:

• Frame outside dimensions: 27" x 17.25" (replaces frames 26.5" to 27" wide and 16.75" to 17.25" tall)
• Door cutout dimensions: 26" x 16.25"
• Glass dimensions: 1" thick, 25" wide, 15.25" tall

Narrow size:

• Frame outside dimensions: 23" x 18" (replaces frames 22.5" to 23" wide and 17.5" to 18" tall)
• Door cutout dimensions: 22" x 17"
• Glass dimensions: 1" thick, 21" wide, 16" tall
