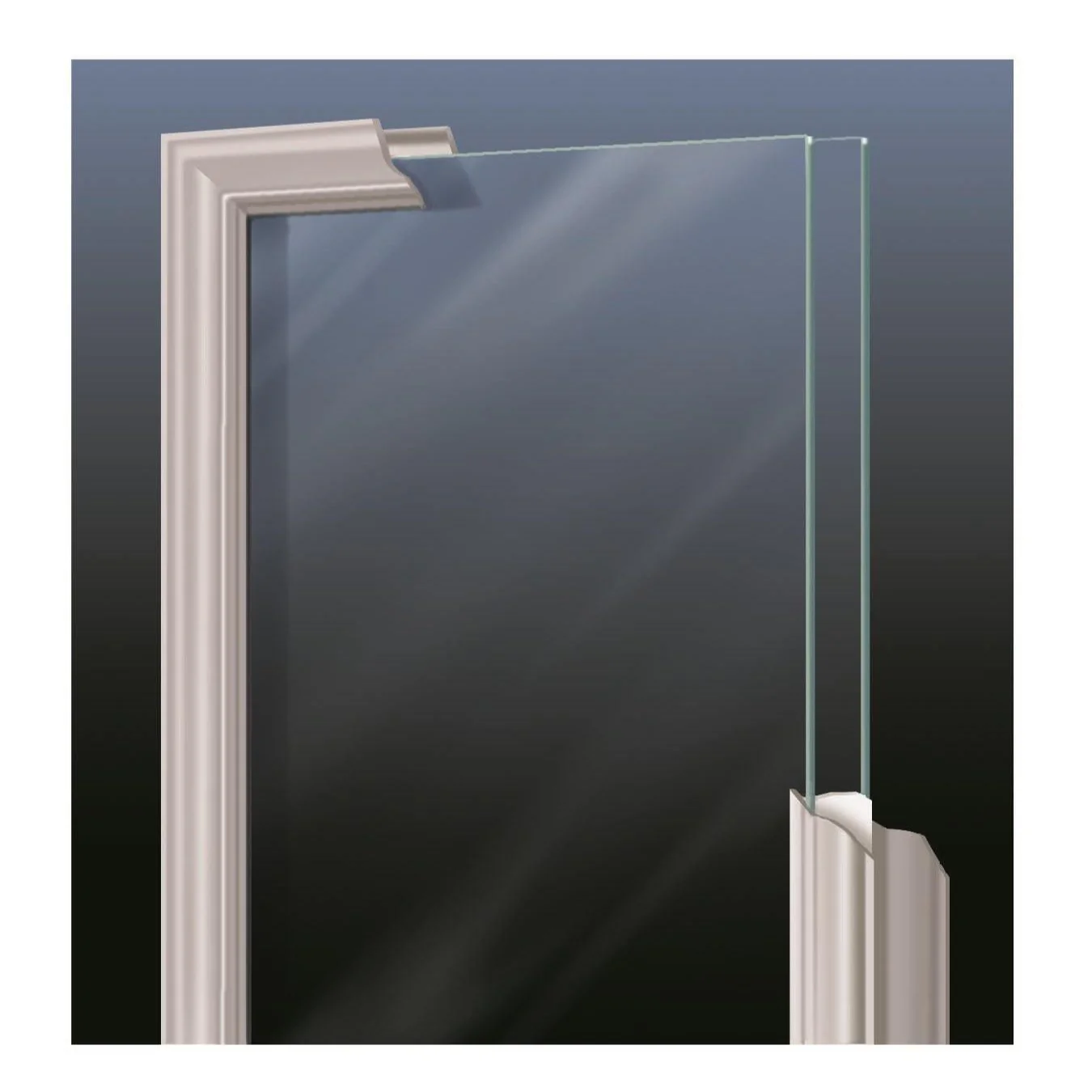

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Half Lite (rectangular)

Standard Size:

• Frame outside dimensions: 24" x 38" (replaces frames 23 1/2" to 24" wide and 37 1/2" to 38" tall)
• Door cutout dimensions: 23" x 37"
• Glass dimensions: 1/2" or 1" thick, 22" wide, 36" tall

Narrow Size:

• This size is typically found on narrow (30" and narrower) doors
• Frame outside dimensions: 22" x 38" (replaces frames 21 1/2" to 22" wide and 37 1/2" to 38" tall)
• Door cutout dimensions: 21" x 37"
• Glass dimensions: 1/2" or 1" thick, 20" wide, 36" tall

Wide Size:

• This size is typically found on wide (38" and wider) doors
• Frame outside dimensions: 26" x 38" (replaces frames 25 1/2" to 26" wide and 37 1/2" to 38" tall)
• Door cutout dimensions: 25" x 37"
• Glass dimensions: 1/2" thick, 24" wide, 36" tall
