Door Glass and Frame Kit

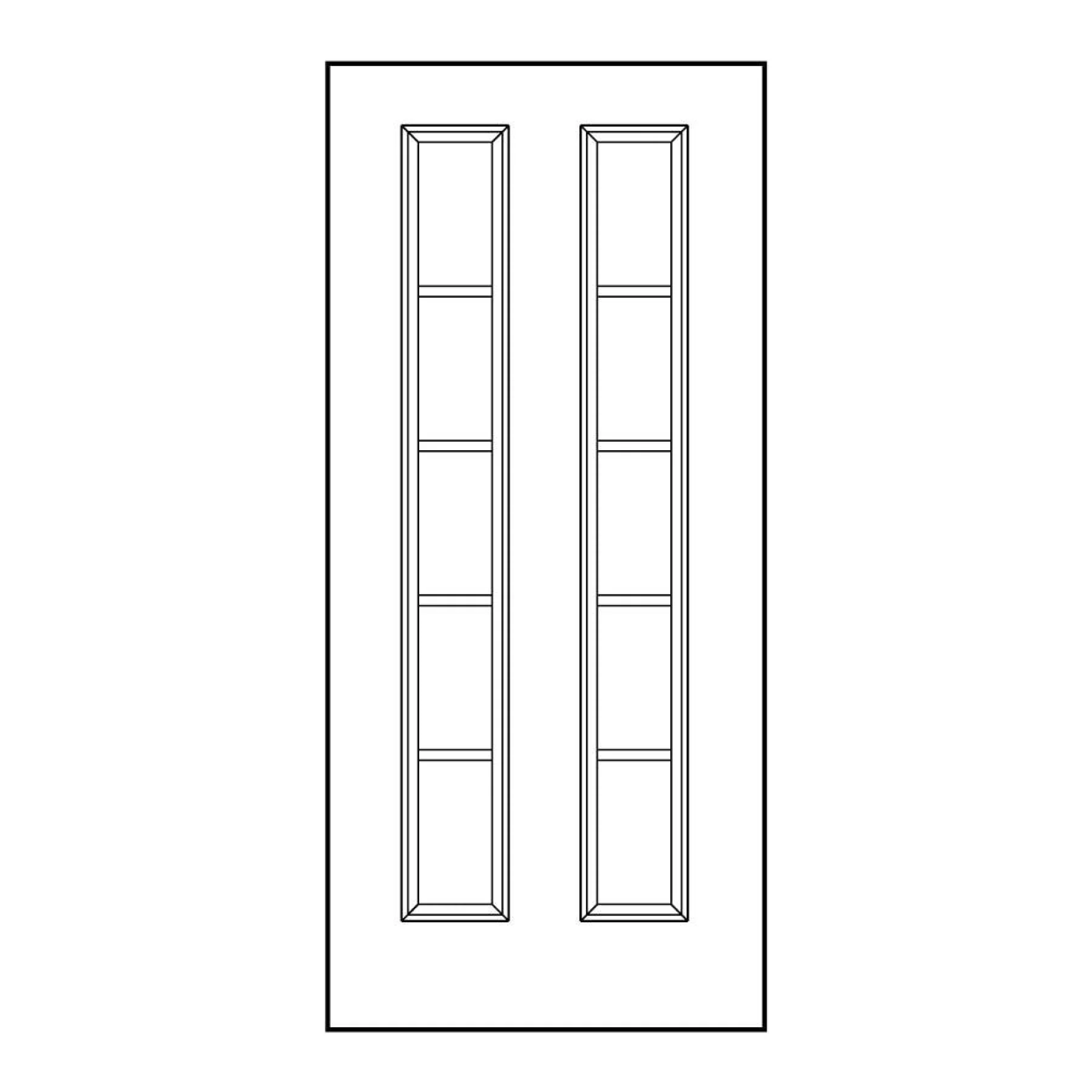

New door glass can transform your entryway without the need to replace your entire door system. Classic 5 lite style with external grids.

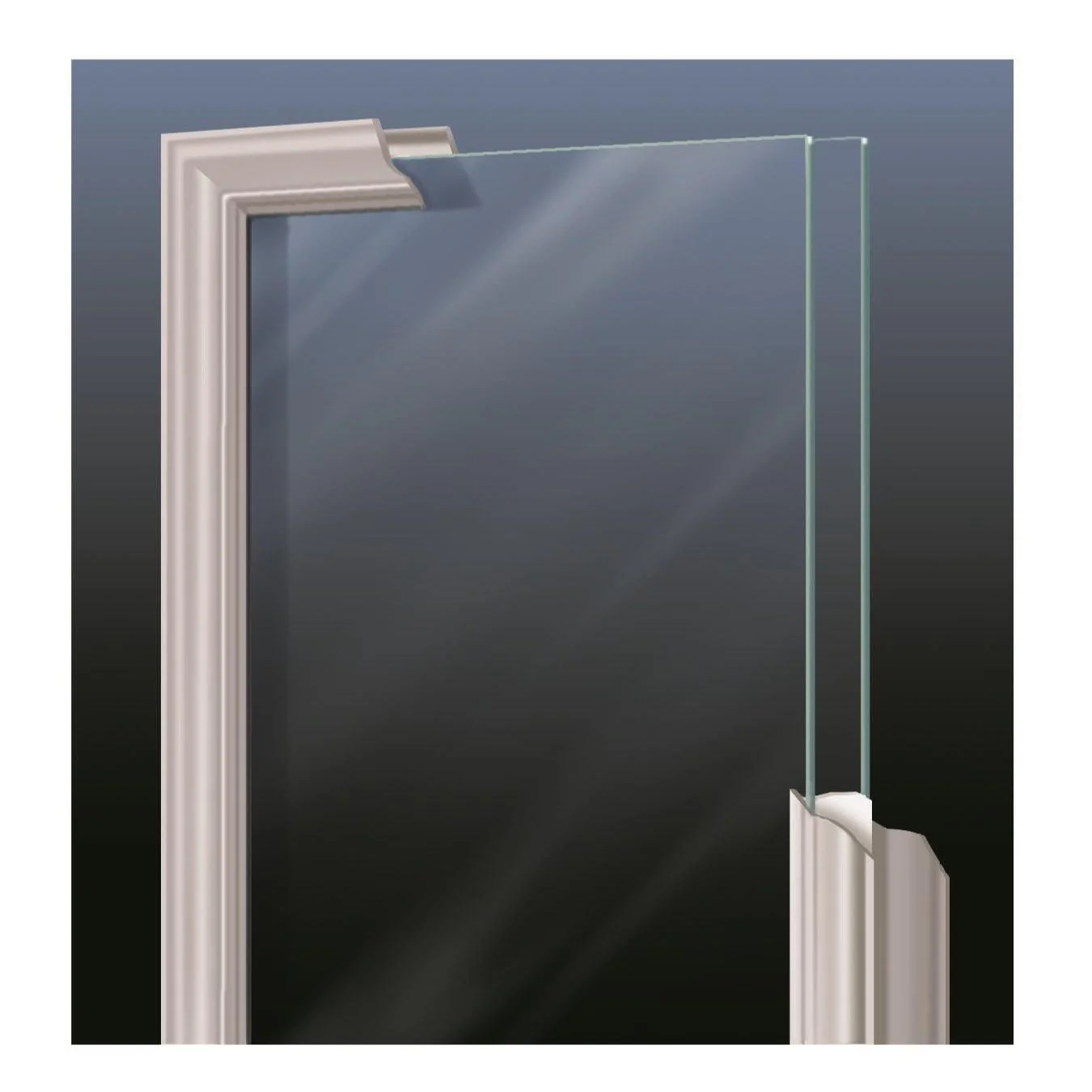

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Full Sidelite (rectangular)

Standard Size:

• Frame outside dimensions: 9" x 66" (replaces frames 8 1/2" to 9" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 8" x 65"
• Glass dimensions: 1/2" thick, 7" wide, 64" tall

Wide Size:

• Frame outside dimensions: 10" x 66" (replaces frames 9 1/2" to 10" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 9" x 65"
• Glass dimensions: 1/2" (clear) or 1" (low-e) thick, 8" wide, 64" tall

Narrow Size:

• This size is typically found on narrow (30" and narrower) doors
• Frame outside dimensions: 8" x 66" (replaces frames 7 1/2" to 8" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 7" x 65"
• Glass dimensions: 1/2" thick, 6" wide, 64" tall
