Door Glass and Frame Kit

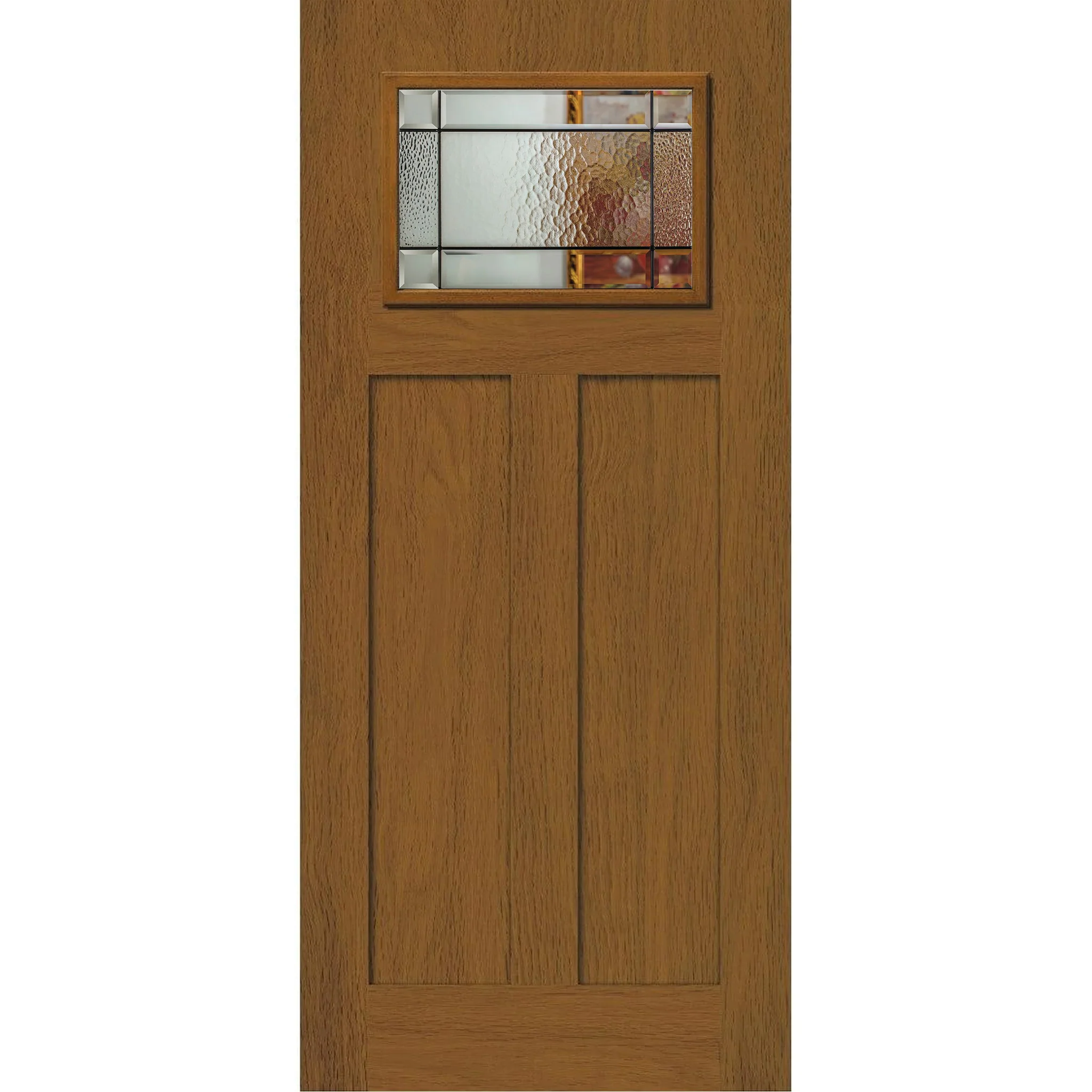

New door glass can transform your entryway without the need to replace your entire door system.

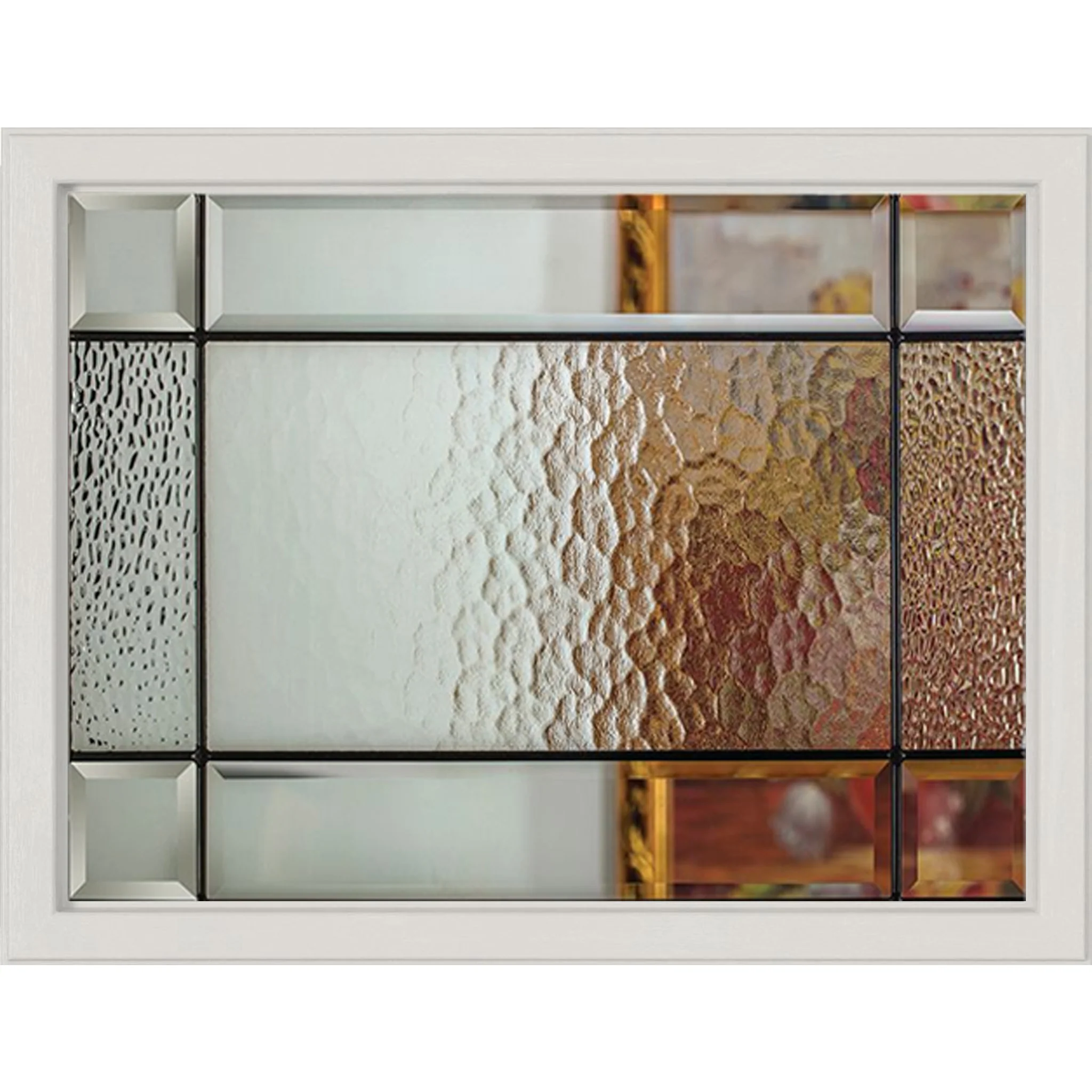

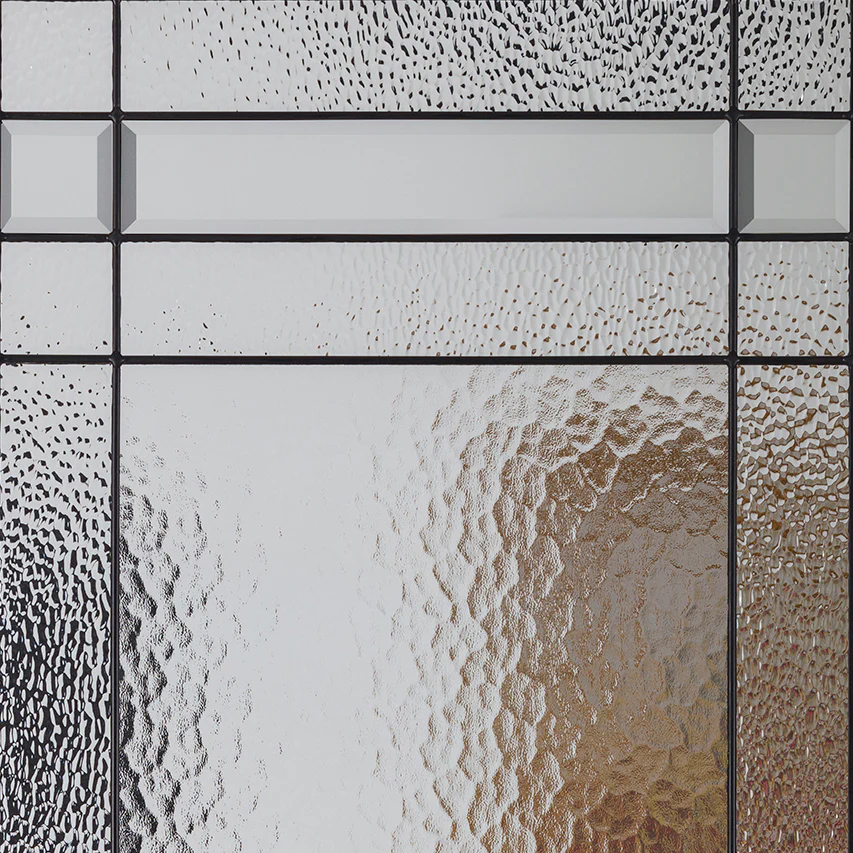

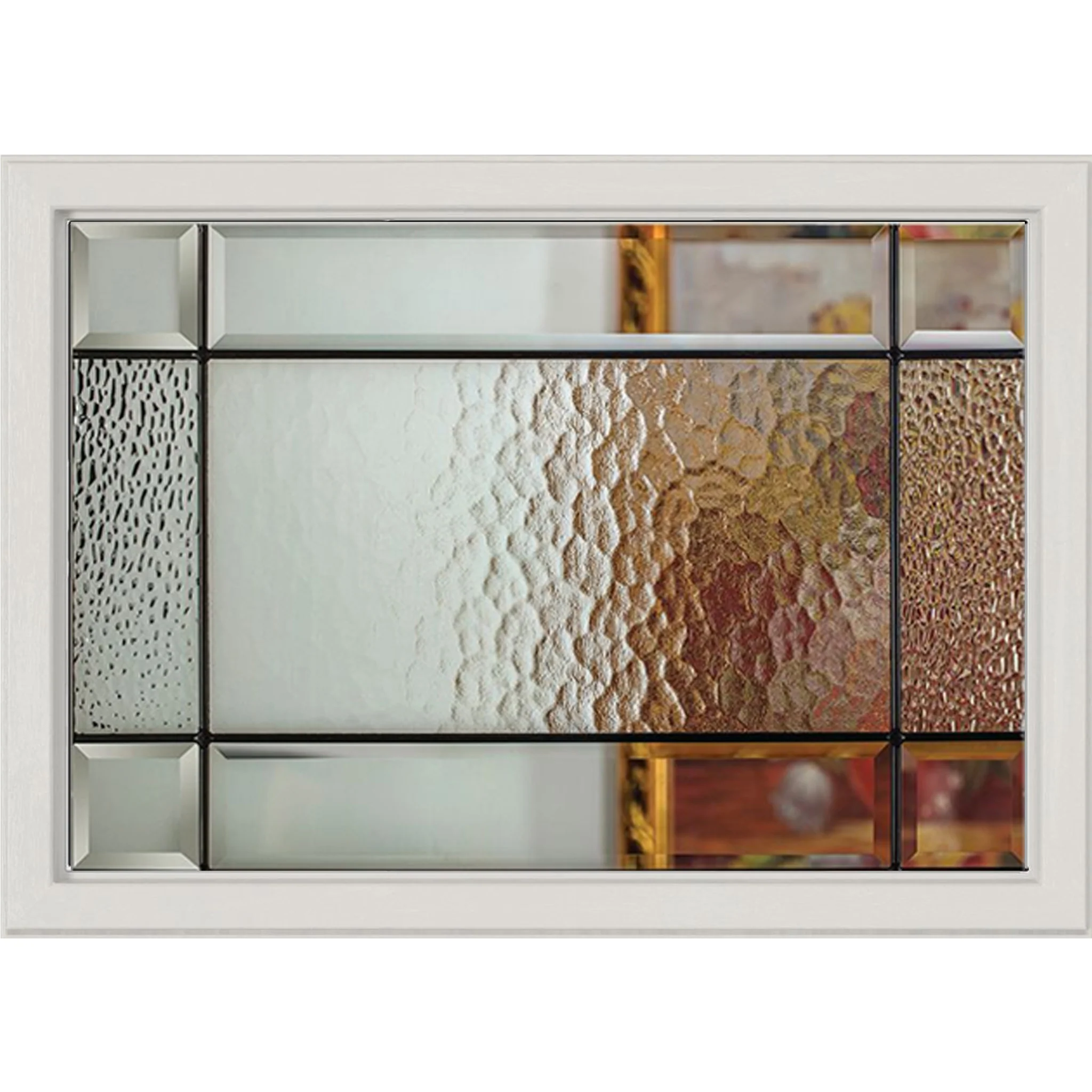

Connecticut offers a refined geometric design that complements both traditional and transitional home styles. Featuring a combination of clear bevels, hammered, and aqualite glass, it creates a sophisticated interplay of light and texture. Framed with patina caming, this design provides a high privacy level of 4/5, making it an ideal choice for homeowners seeking both elegance and seclusion.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Craftsman (also known as Quaker style, rectangular)

Standard size:

• Frame outside dimensions: 24" x 17.25" (replaces frames 23.5" to 24" wide and 16.75" to 17.25" tall)
• Door cutout dimensions: 23" x 16.25"
• Glass dimensions: 1/2" thick, 22" wide, 15.25" tall

Tall size:

• Frame outside dimensions: 24" x 19" (replaces frames 23.5" to 24" wide and 18.5" to 19" tall)
• Door cutout dimensions: 23" x 18"
• Glass dimensions: 1/2" thick, 22" wide, 17" tall
