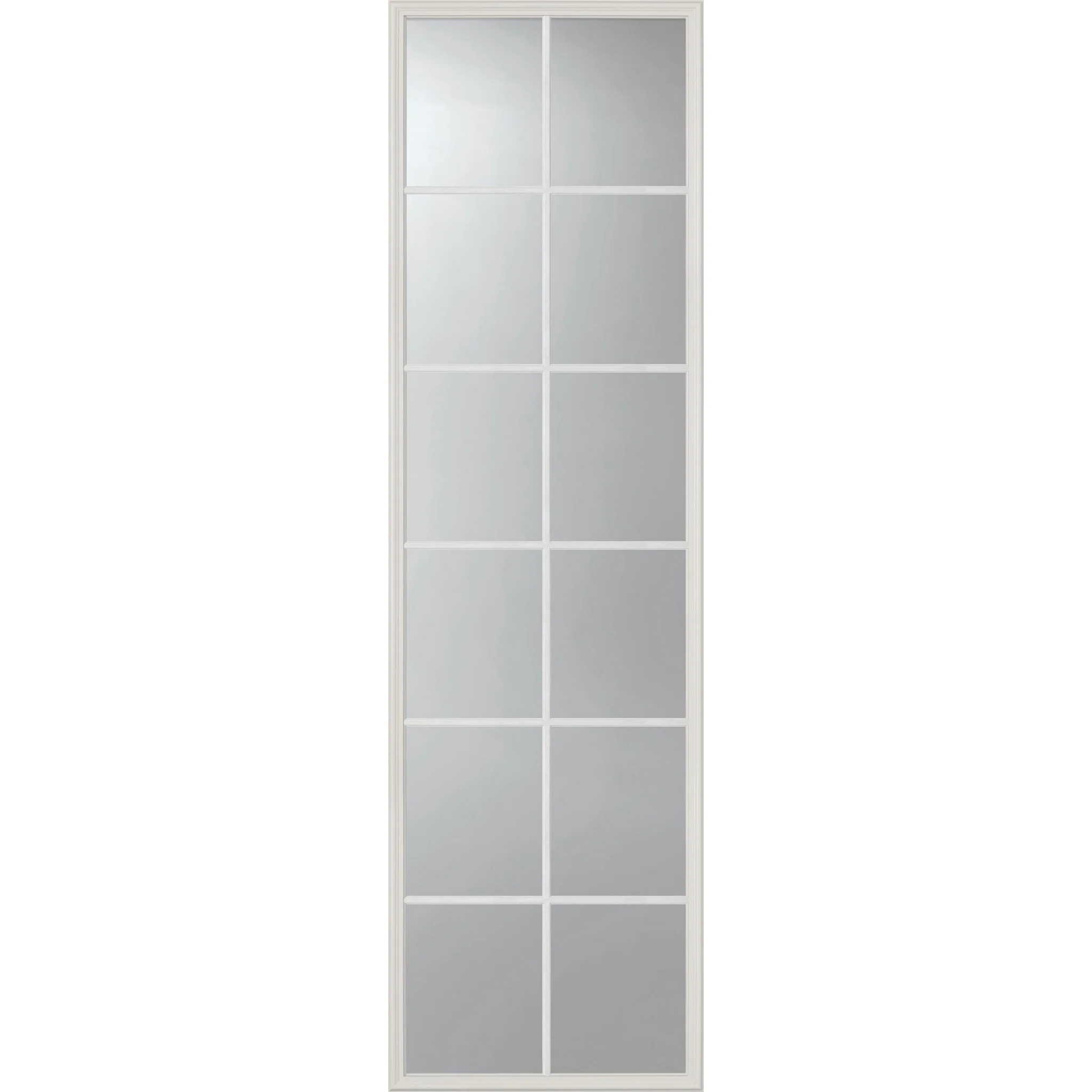

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system. Classic 12 lite style with external grids and standard profile frames. 1/5 privacy rating.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Tall Full Lite (rectangular)

Standard Size:

• Frame outside dimensions: 24" x 82" (replaces frames 23 1/2" to 24" wide and 81 1/2" to 82" tall)
• Door cutout dimensions: 23" x 81"
• Glass dimensions: 1/2" (clear glass) or 1" (low-e) thick, 22" wide, 80" tall

Narrow Size:

• This size is typically found on narrow (30" and narrower) doors
• Frame outside dimensions: 22" x 82" (replaces frames 21 1/2" to 22" wide and 81 1/2" to 82" tall)
• Door cutout dimensions: 21" x 81"
• Glass dimensions: 1/2" (clear glass) or 1" (low-e) thick, 20" wide, 80" tall
