Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

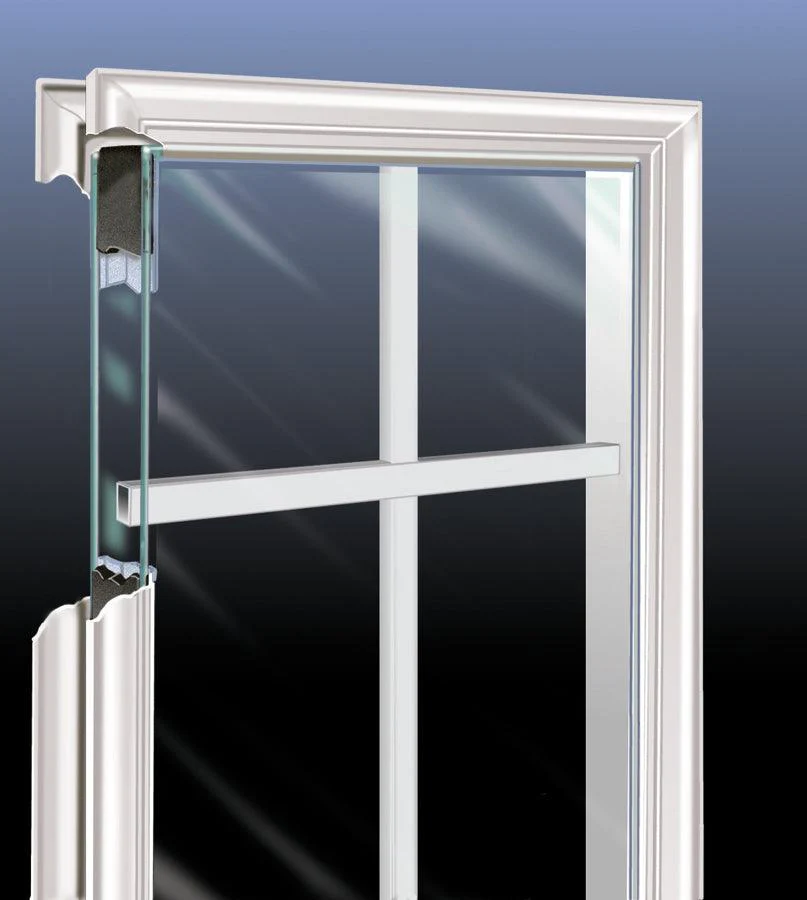

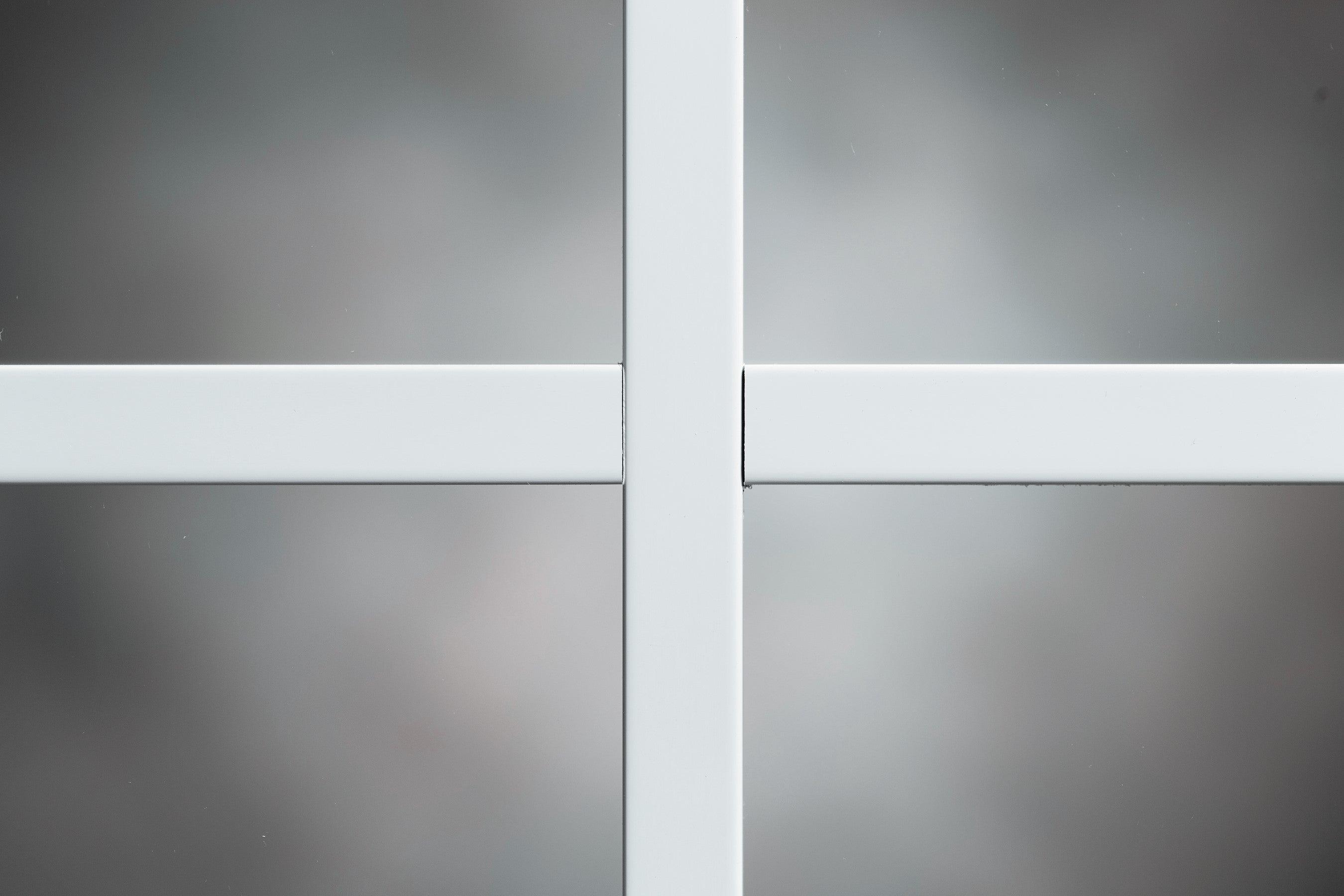

Grills Between Glass (Internal Dividers or Bars) style. Internal flat 5/8" bars give a more modern divided light look while keeping the glass easy to clean.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

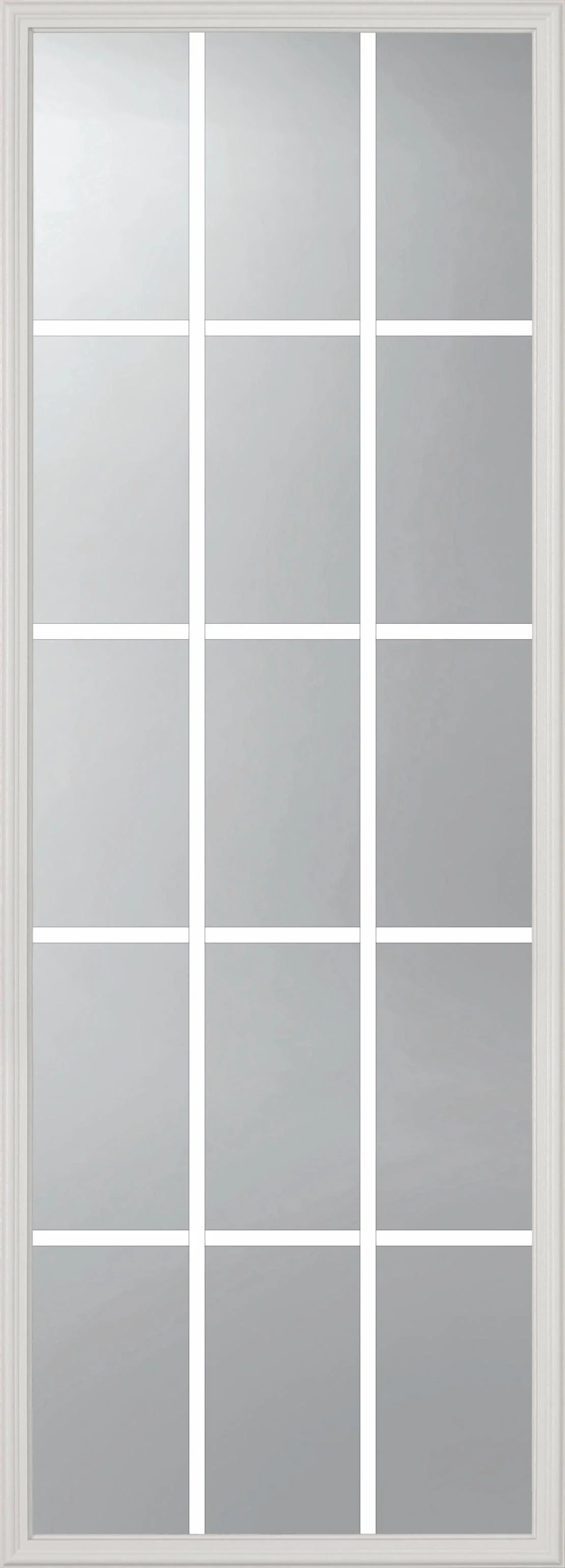

Style: Full Lite (rectangular)

Standard Size:

• Frame outside dimensions: 24" x 66" (replaces frames 23 1/2" to 24" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 23" x 65"
• Glass dimensions: 1/2" thick, 22" wide, 64" tall

Narrow Size:

• This size is typically found on narrow (30" and narrower) doors
• Frame outside dimensions: 22" x 66" (replaces frames 21 1/2" to 22" wide and 65 1/2" to 66" tall)
• Door cutout dimensions: 21" x 65"
• Glass dimensions: 1/2" thick, 20" wide, 64" tall
